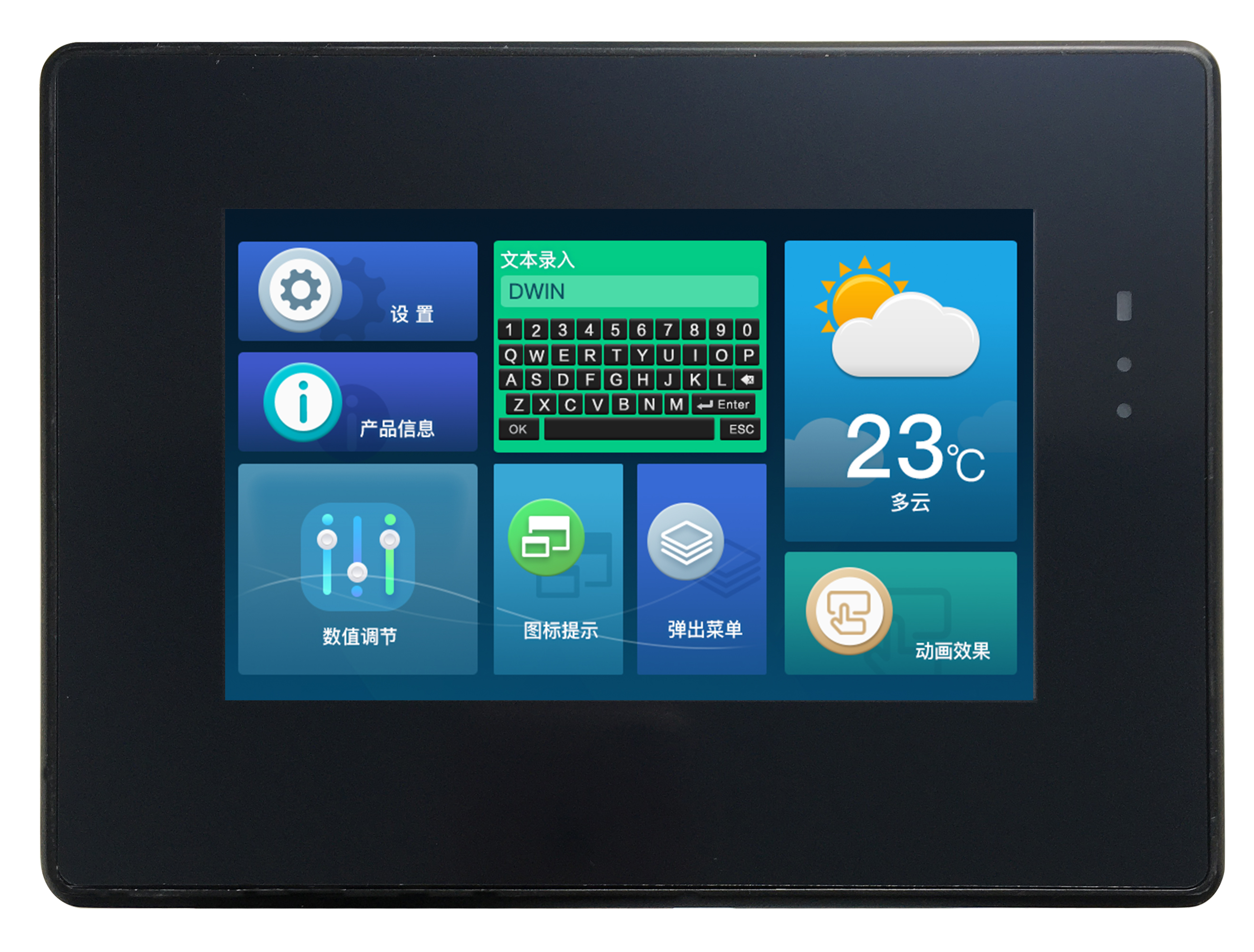

- Varient Resistive Touch: DMG80480T050_A5WTR
- Touch Life: >1,000,000 times
- Varient Capacitive Touch DMG80480T050_A5WTC
- Touch Life: >10,000,000 times
|
- LCD Size: 5.0 inches
- LCD Type: IPS-TFT-LCD
- Resolution: 800×480 pixels
- Brightness: 250 – 300 nit
- Display Grade: Industrial Grade
- Colors: 16.7M (24-bit 8R8G8B)
- Viewing Angle: 85°/85°/85°/85° (L/R/U/D)
- Active Area (A.A.): 108.8mm (W) ×65.6mm (H)
- Form Factor: 160.0 (W) ×118.0(H)×23.5(T)mm
- Backlight LED Lifetime: >30,000 hours
|
- Chip: T5L1 ASIC
- Flash Memory: 16MB NOR Flash
- Expandable Flash: Up to 64MB NOR Flash
- Serial Interface: UART2 RS232, UART4 RS232, UART5 RS485
- User Interface: 8Pin_3.81mm socket for power supply and serial communication. Download rate (typical value): 12KByte/s
- RTC: Yes
- Speaker: Onboard speaker. Power: 2W
|
- Operating Voltage: 7~36V (typical value: 12V)
- Operating Current: 130mA (max brightness), 60mA (backlight off)
- Recommended Power Supply: 12V DC / 1A
|
- Operating Temperature: -20°C to 70°C
- Conformal Coating: Yes
|
|
