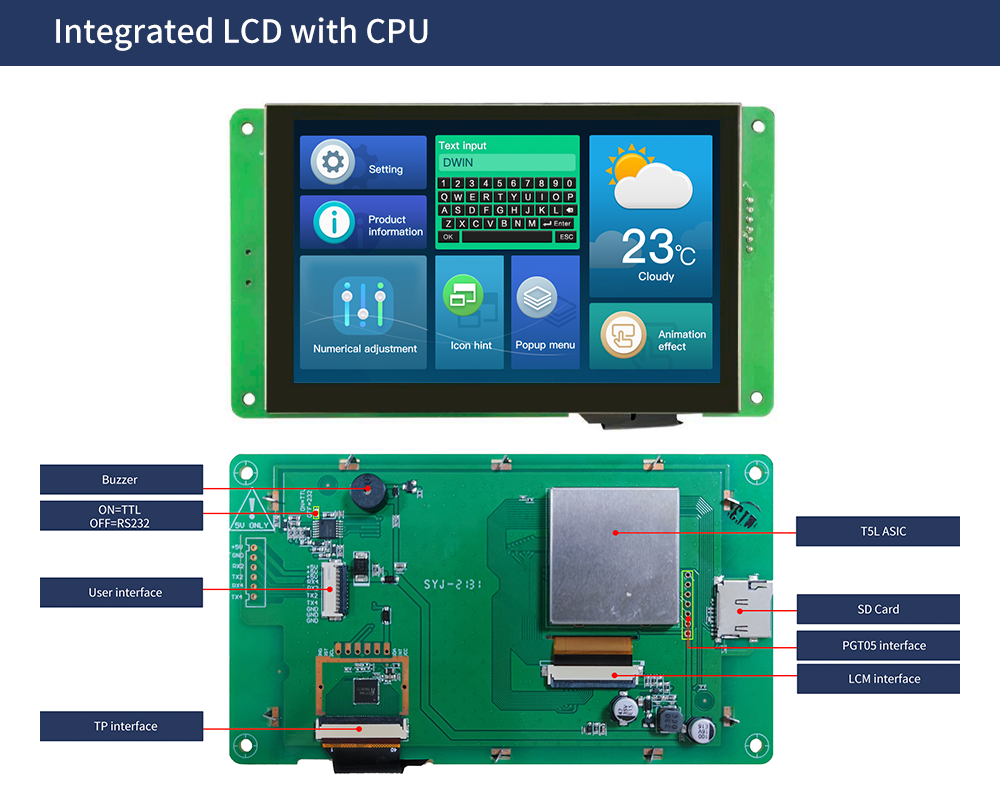

DMG80480C050_04W (5-Inch, 800×480 Resolution, COB UART Display)

Categories: 5 Inch, COB, UART

Description

Display

Hardware

Electrical Specifications

Operating Environment

Development and Support

Available Variant

Size: 5.0 inches
Type: IPS, TFT LCD
Resolution: 800×480 pixels (0°/90°/180°/270°)
Brightness: 280nit – 300 nits
Colors: 262K (18-bit 6R6G6B)
Backlight LED Lifetime: >20000 hours
Enclosure : No

Serial Interface: UART2: ON=TTL/CMOS; OFF=RS232; UART4: ON=TTL/CMOS; OFF=RS232

Recommended Power Supply: 5V 1A DC

Operating Temperature: -20℃~70℃ (5V @ 60% RH)
Conformal Coating: None

System: DGUS II system

Resistive Touch: DMG80480C050_04WTC
Touch Life: Over 1 million times touch

Without Touch: DMG80480C050_04WN
