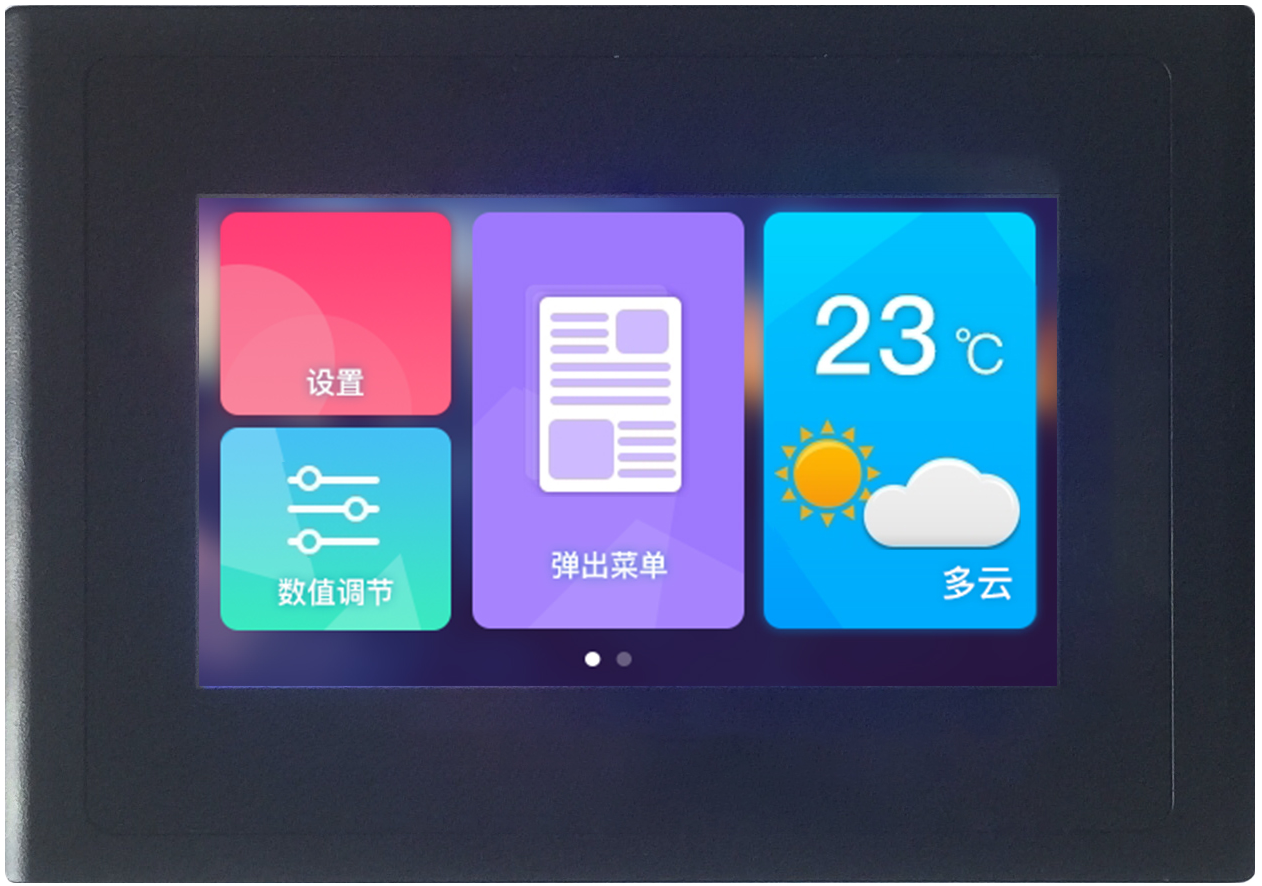

- Varient Resistive Touch: DMG48270C043_15WTR
- Touch Life: >1,000,000 times
|
- LCD Size: 4.3-inch
- LCD Type: TV-TN, TFT LCD
- Resolution: 480×272 pixels (support 0°/90°/180°/270°)
- Brightness: 250nit
- Display Grade: Commercial grade
- Colors: 262K colors (18-bit 6R6G6B)
- Viewing Angle: TV viewing angle, 70°/70°/40°/30°（L/R/U/D）
- Active Area (A.A.): 95.00mm (W)×53.90mm (H)
- Form Factor: 139.8mm (W)×97.8mm (H) ×22.2mm (T)
- Backlight LED Lifetime: >10000 hours
|
- Chip: T5L0 ASIC
- Flash Memory: 8MBytes NOR Flash
- Expandable Flash: Expanding FLASH requires replacing 8MBytes NOR Flash with 16MBytes NOR Flash before proceeding with the expansion. It can support up to 64MBytes NOR Flash or 48MBytes NOR Flash+512MBytes NAND Flash.
- Serial Interface: UART2: RS232 UART4: RS485
- User Interface: 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
- RTC: Yes
|
- Operating Voltage: 6~36V, typical value of 12V
- Operating Current: 109mA, VCC=12V, max backlight 50mA, VCC=12V, backlight off
- Recommended Power Supply: 12V 1A DC
|
- Operating Temperature: -20℃~70℃ (12V @ 60% RH)
- Conformal Coating: No
|
|
