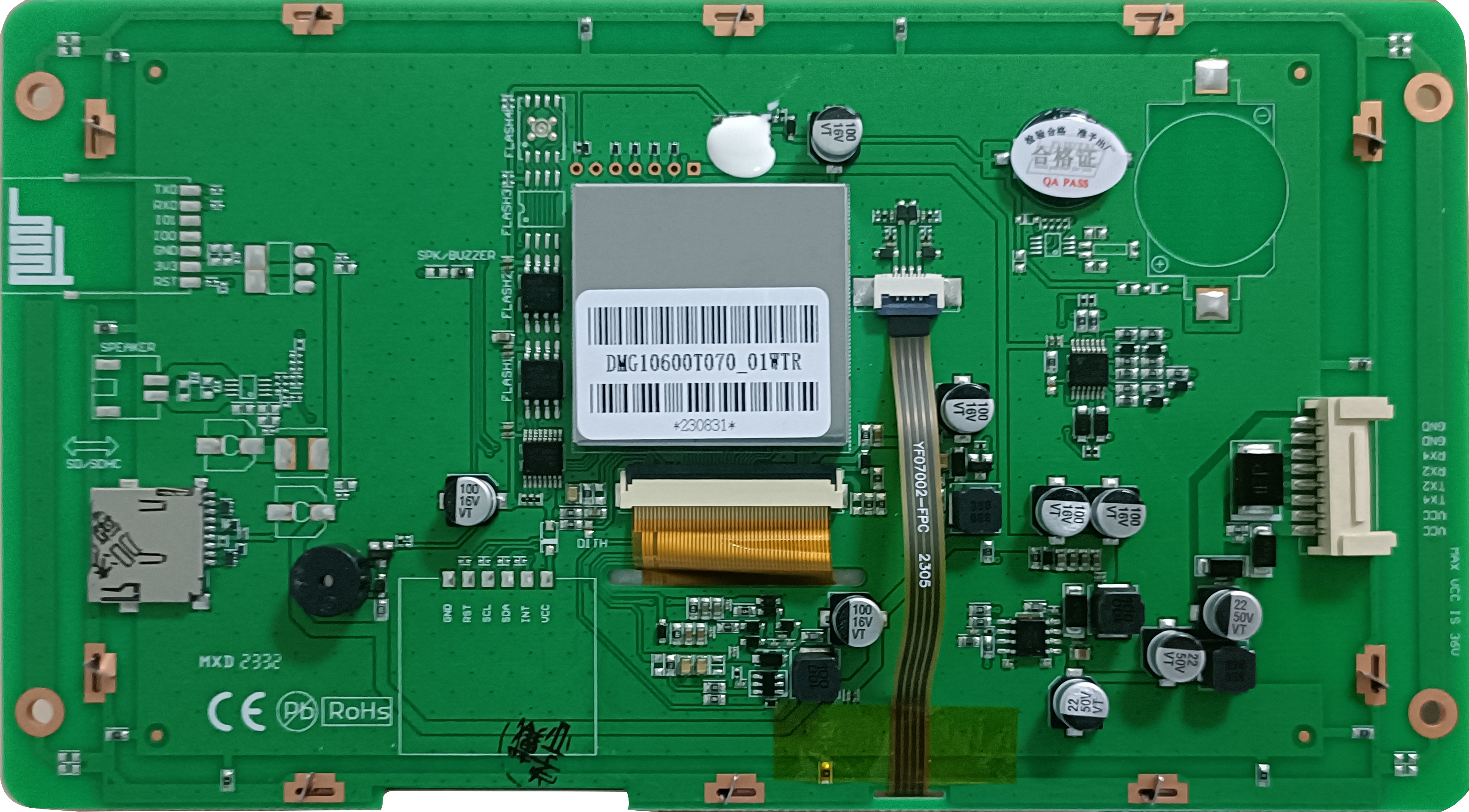

- Varient Resistive Touch: DMG10600T070_01WTR
- Touch Life: >1,000,000 times
- Varient Capacitive Touch DMG10600T070_01WTC
- Touch Life: >10,000,000 times
- Varient Without Touch: DMG10600T070_01WN
|
- LCD Size: 7.0 inches
- LCD Type: IPS, TFT LCD
- Resolution: 1024×600 pixels（0°/90°/180°/270°）
- Brightness: 200-250-300nit
- Display Grade: Industrial Grade
- Colors: 16.7M colors (24-bit 8R8G8B)
- Viewing Angle: Wide viewing angle,85°/85°/85°/85°(L/R/U/D)
- Active Area (A.A.): 154.2mm (W)×85.9mm (H)
- Form Factor: (For WN) – 190.5mm (W)×105.4mm (H)×11.6mm (T) (For WTR, WTC) – 190.5mm (W)×105.4mm (H)×13.3mm (T)
- Backlight LED Lifetime: >30000 hours
|
- Chip: T5L2 ASIC
- Flash Memory: 32MBytes NOR Flash (2*16MBytes)
- Expandable Flash: Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
- Serial Interface: UART2: ON=TTL/CMOS; OFF=RS232( Default RS232) UART4: ON=TTL/CMOS; OFF=RS232 (Only available after OS configuration)
- User Interface: 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
- RTC: Yes
- Reserved module interface: Wi-Fi module: connect to the cloud platform to update remotely USB module: download files by USB flash diskUser Interface
|
- Operating Voltage: 6~36V, typical value of 12V
- Operating Current: 265mA VCC=12V, max backlight 108mA VCC=12V, backlight off
- Recommended Power Supply: 12V 1A DC
|
- Operating Temperature: -20℃~70℃ (12V @ 60% RH)
- Conformal Coating: Yes
|
|
